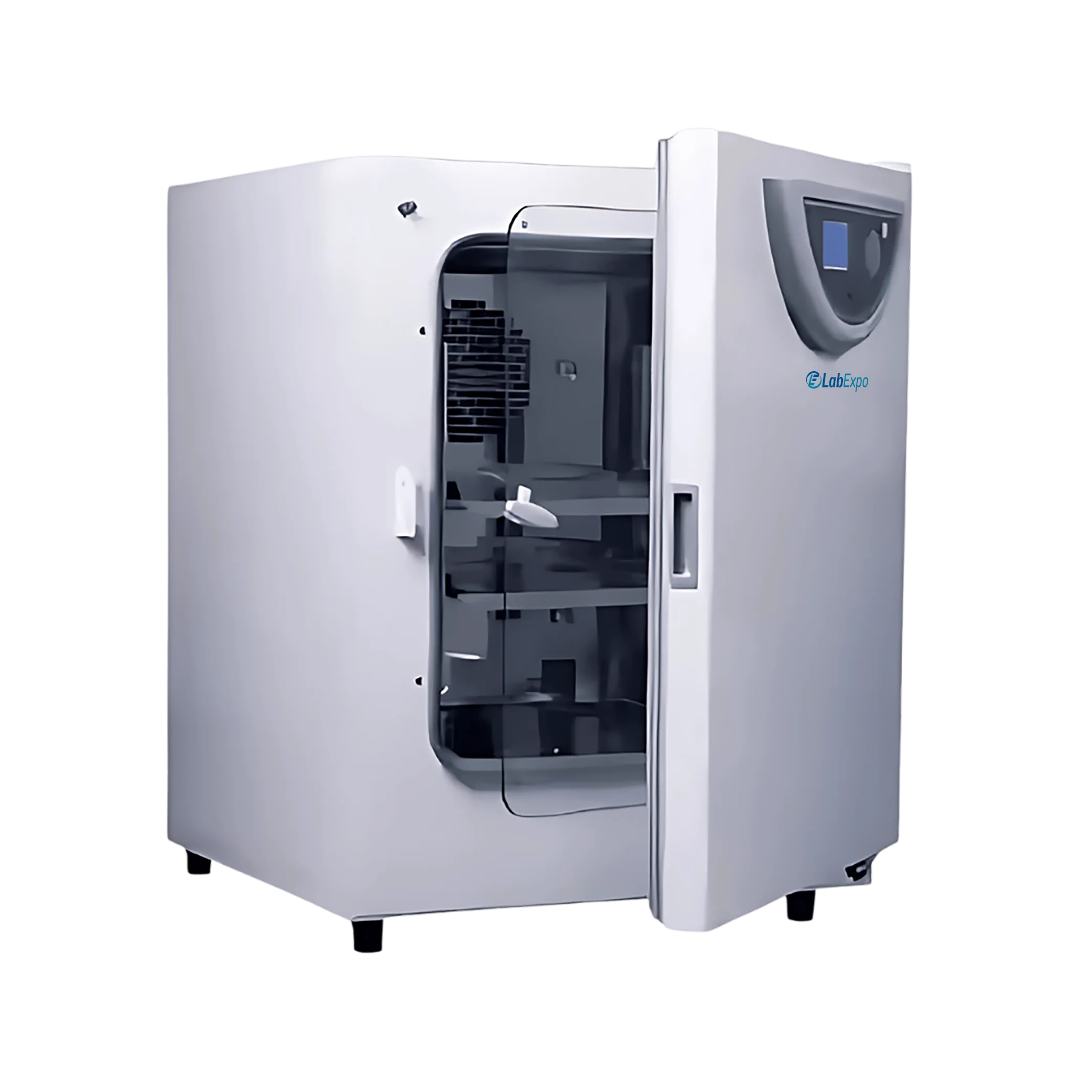

Air Jacketed CO2 Incubator 31-ACI101

Air jacketed CO2 Incubator delivers a higher level of performance for a dependable and reliable in-vitro growth environment through water jacket that provides true temperature uniformity and CO2 gas control. They are equipped with Hot Air Circulation System and UV light system for periodic sterilization of chamber which stands as the ultimate reason behind a successful incubation. It is designed with polished stainless-steel shelves and semicircular arcs at corners for easy cleaning. It comes with 80 L to 233 L capacity range.

Chamber Volume 155 L
Shelves 3 (pcs)
Heating Method Air-jacketed, PID Control
Temperature Range RT + 5 ~ 55 ℃
Ambient Temperature RT + 5 ~ 30 ℃
Temperature Stability ± 0.1 ℃
CO2 Range 0 ~ 20 % V/V
CO2 Control Resolution ± 0.1 % (IR sensor)
CO2 Recovery (Door open 30 s, recovery to 5 %) ≤ 3 min
Temperature Recovery Temperature Recovery (Door open 30 s, recovery to 37 ℃ ) ≤ 8 min
Humidity Method Natural vaporization > 95 %
Interior Dimension (W × D × H) 480 × 530 × 610 mm
Exterior Dimension (W × D × H) 670 × 767 × 880 mm
Power AC 220 V / 50 Hz
Power Consumption 750 W
  • Microprocessor-based PID controller with large LCD screen
  • Functions incorporated like Alarm function for temperature difference, over CO2 concentration, door open time, UV working status, etc.
  • Equipped with micro-organism filter at inlet for filtration of bacteria, dust, so that it supplies pure CO2 into the incubator
  • Separate temperature-limiting alarm system for safe usage
  • Auto-controller of fan speed to prevent sample damage
  • Door temperature controller prevents dewfall on glass door
  • Options are available to connect printer and computer for data recording (Optional) via RS-485 connector

RS485 connector
Humidity Display
CO2 pressure releasing valve

These air jacketed CO2 incubators are widely used for a broad range of applications that includes: Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.
